ESPON_SureColor_T7770DM_Printer_Specification_Sheet_CPD-61723R1

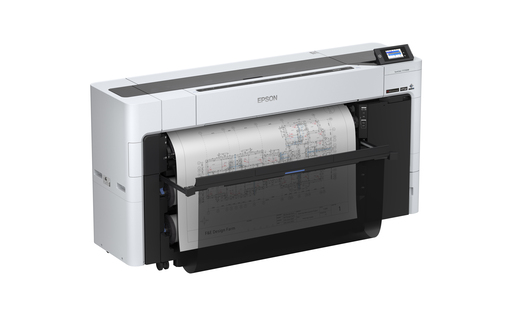

Epson SureColor ® T7770DM 44-Inch Large-Format Multifunction CAD/Technical Printer
Print | Copy | Scan
Print
Printing Technology PrecisionCore MicroTFP 6-channel drop
on demand
Ink Type UltraChrome XD3 pigment ink; 6-color with Red
(Cyan, Magenta, Yellow, Red, Matte Black, Photo Black)
Nozzle Configuration 9,600 nozzles (1,600 x 6 channels)
Droplet Technology
Smallest Droplet Size: 3.5 picoliters; Variable Droplet Technology
can produce up to 3 different sizes per nozzle
Maximum Resolution 2400 x 1200 dpi
Real-Time Black Ink Selection Dedicated Photo and Matte
Black Ink channels selected automatically based on media type
Print Speed1
A1/D-Size (Plain Paper): 16 sec
A0-Size (Plain Paper): 32 sec (Speed Mode)
A0-Size (Glossy): 108 sec (Speed Mode)
Printer Language/Drivers
Epson Professional Print Drivers (included), Epson ESC/P® raster,
Adobe® PostScript 3™, Adobe PDF 1.7, Adobe Embedded Print
Engine (included)
Memory (Built-In): 6GB Printer + 3GB Scanner
Ink3
In-Box Cartridge Fill Volume
Colors (C, M, Y, R): 240 mL each
Black (MK, PK): 240 mL each
Retail Cartridge Fill Volume
Colors (C, M, Y, K, R): 110 mL, 350 mL or 700 mL
Black (MK, PK): 110 mL, 350 mL or 700 mL
Printer is designed for use with Epson cartridges only, not thirdparty cartridges or ink*.
Copy
Maximum Copies Up to 99
Reduction/Enlargement 25% – 755%
Scan
Scanner Type RGB Color Filter CIS
Scan/Copy Resolution Up to 600 dpi, reprint 2400 x 2100 dpi
Scan Speed2
Up to 4.5 ips (color)
Up to 10 ips (monochrome)
Maximum Scan Width Up to 36″
Maximum Scan Length Up to 120″ (300 dpi)
Scan Media Type Plain Paper, Recycled Paper, Coated Paper,
Glossy Paper, Tracing Paper, Film, Blueprint, Offset Printing Paper,
Newspaper, Flyer, Drafting Paper, Carrier Sheet
Maximum Copies Up to 99
Reduction/Enlargement 25% – 755%
File Type Support JPEG, PDF (Single Page), PDF (Multi-Page),
PDF/A, Encrypted PDF, TIFF
Printer Interfaces
SuperSpeed USB 3.0, 100Base-TX/1000Base-T, IEEE 802.11 b/g/n/
ac, USB memory stick, 960GB (SSD), Adobe Embedded Print Engine,
Articulating LCD Display, 4.3″ touchscreen and Optional RFID card
reader (USB Expansion Port)
Connectivity
Standard Connectivity SuperSpeed USB 3.0, Gigabit Ethernet
and Wi-Fi
® connectivity (2.4 GHz and 5 GHz)
Operating Systems Supported4
Mac® OS X® 10.9.5 or later, macOS® 11 or later
Windows® 10, Windows 8.1, Windows 8, Windows 7, Windows Vista®,
Windows XP® (32-bit/64-bit), Windows Server® 2019/2016/2012 R2/
2012/2008 R2/2008/2003 R2/2003 SP2 or later
Paper Handling
Roll Media Handling
Number of Input Rolls: 2 (Input Roll #1 can be used optionally as
a take-up reel)
Take-Up Reel: Included
Take-Up Reel Configuration: Roll print-side in or print-side out
(selectable)
Minimum Roll Width: Minimum 10″
Maximum Roll Width: Up to 44″
2″ or 3″ Core Diameter: User-adjustable roll media spindles
Roll Cutting5
: High-speed internal rotary cutter; auto or manual
(replaceable)
Maximum Roll Diameter: Up to 6.69″
Maximum Roll Weight: 27 lb
Roll Media Thickness: 0.07 mm to 0.8 mm
Roll Paper Remaining: Printable barcode tracking; the amount of
remaining paper can be controlled and monitored automatically
from the control panel
Sheet Media Handling
Single Sheet, Front- or Rear-Loading: Up to 44″ wide
Minimum Sheet Width: 8″
Minimum Sheet Length: 8″
Sheet Media Maximum Thickness: Up to 1.5 mm
Posterboard: 0.8 mm – 1.5 mm (rigid posterboard only)
Printable Area and Accuracy
Line Accuracy: ±0.1% or ±0.26 mm (whichever is greater)6
Margins:
Left/Right: 3 mm per side (standard) or 0 mm at BorderFree® widths
Top/Bottom:
Roll Paper: Minimum 3 mm top and 3 mm bottom
Cut Sheet: Minimum 3 mm top and 12.7 mm bottom
BorderFree Sizes: 10″, 13″, 16″, 17″, 20″, 24″, 36″ and 44″ wide
Maximum Printable Length7
: Up to 298 ft
Minimum Line Width: 0.08 mm
General
Temperature
Operating: 50 ˚F to 95 ˚F (10 ˚C to 35 ˚C)
Storage: -4 ˚F to 104 ˚F (-20 ˚C to 40 ˚C)
Relative Humidity
Operating: 20% – 80% (no condensation)
Storage: 5% – 85% (no condensation)
Acoustic Noise Level
Operating: 49.6 dBA
Sleep: 6.6 dBA
Power Requirements
Voltage: AC 110 V – 240 V
Frequency: 50 Hz – 60 Hz
Current: 3.4 A
Power Consumption
Printing: Approx. 90 W
Ready: Approx. 44 W
Sleep: 2 W
Power Off (Standby): 0.3 W
Safety Approvals
USA and Canada (NRTL Certified, CSA/UL 62368-1)
Compliant with FCC Class B Requirements

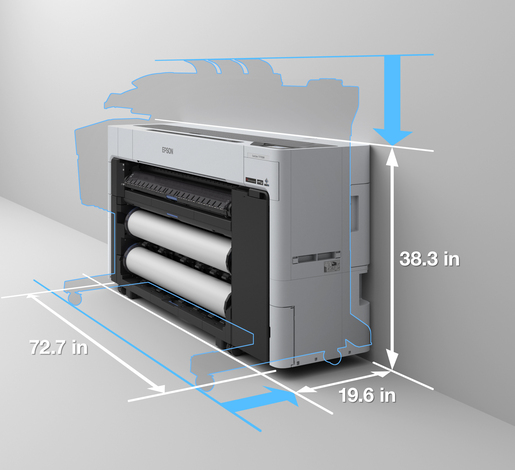

Dimensions (W x D x H)
73″ x 20″ x 39″ (storage and operating)
73″ x 33″ x 39″ (paper basket extended)
Weight: 366 lb
Country of Origin Indonesia
What’s Included
SureColor T7770DM Printer, Full Set of Initial Ink Cartridges (240 mL
each: C, M, Y, MK, PK, R), Maintenance Box (Pre-Installed),
Borderless Maintenance Box, Two Roll Media Adapters (PreInstalled), Start Here Poster, AC Power Cable
Note: Media is not included with the printer.
Software Available EpsonNet Setup, Software and Firmware
Updaters, EpsonNet Print, Windows and Mac Print Drivers, LFP
Accounting Tool, Epson Cloud Solution PORT8, Epson Edge®
Dashboard, Epson Media Installer, Epson Device Admin, Epson
Print Admin, EpsonNet Config SE, EPSON Manuals, Epson ESC/P,
Adobe PostScript 3, Adobe PDF 1.7
SERVICE PLANS
Preferred Installation Program – SureColor T-Series EPPT44INS
4-Year Epson Preferred Plus Next-Business-Day On-Site Repair Extended Service Plan
(At Time of Hardware Purchase) – SureColor T7700DM PST7700DMS4
2-Year Epson Preferred Plus Next-Business-Day On-Site Repair Extended Service Plan
(At Time of Hardware Purchase) – SureColor T7700DM PST7700DMS2
1-Year Epson Preferred Plus Next-Business-Day On-Site Repair Extended Service Plan (In Coverage)
– SureColor P7700DM IWT7700DMS1
1-Year Epson Preferred Plus Next-Business-Day On-Site Repair Extended Service Plan
(At Time of Hardware Purchase)
– SureColor T7700DM PST7700DMS1
Eco Features
ENERGY STAR® qualified
RoHS compliant
End-of-life options available11
Epson America, Inc. is a SmartWay® Transport Partner12
Ordering Information
SureColor T7770DM SCT7770DM
Replacement Printer Cutter Blade C13S210117
Additional Roll Feed Spindle (44″) C12C936171
Maintenance Box C13S210115
Borderless Maintenance Box C13S210116
Cleaning Stick C13S090013
UltraChrome XD3 Ink (110 mL)
Cyan Ink Cartridge T51A220
Magenta Ink Cartridge T51A320
Yellow Ink Cartridge T51A420
Matte Black Ink Cartridge T51A820
Photo Black Ink Cartridge T51A120
Red Ink Cartridge T51AF20
UltraChrome XD3 Ink (350 mL)
Cyan Ink Cartridge T50S220
Magenta Ink Cartridge T50S320
Yellow Ink Cartridge T50S420
Matte Black Ink Cartridge T50S820
Photo Black Ink Cartridge T50S120
Red Ink Cartridge T50SF20
UltraChrome XD3 Ink (700 mL)
Cyan Ink Cartridge T50L220
Magenta Ink Cartridge T50L320
Yellow Ink Cartridge T50L420
Matte Black Ink Cartridge T50L820
Photo Black Ink Cartridge T50L120
Red Ink Cartridge T50LF20
