Description
Main Specifications
| TASKalfa 2554ci | TASKalfa 3554ci | |||
|---|---|---|---|---|
| Main Function | Copy, Print, Scan, Fax (Optional) | |||
| Writing Method | Semiconductor Laser | |||
| CPU | ARM A53 1.6GHz | |||
| Print Speed (A4) (Mono/Color) | 25/25 ppm | 35/35 ppm | ||
| Scanning Speed (A4) 300dpi | DP-7140 | Simplex | 50 ipm | |
| Duplex | 16 ipm | |||
| Scanning Speed (A4) 300dpi | DP-7150 | Simplex | 80 ipm | |
| Duplex | 48 ipm | |||
| Scanning Speed (A4) 300dpi Dual Scan | DP-7160 | Simplex | 100 ipm | |
| Duplex | 200 ipm | |||
| Scan with Duplex Feed Detection DP | DP-7170 | Simplex | 100 ipm | |
| Duplex | 200 ipm | |||
| Memory | Standard 4GB (Max. 4GB) | |||
| SSD/HDD Capacity | SSD 32GB (Standard) / HDD 320GB or 1TB (Optional) | |||
| Stable Time (From the mainpower ON) | 18 seconds | |||
| Paper Capacity | Standard | 2 x 500 sheets (Cassette) + 150 sheets (MPT) (A4 / Letter size or less equivalent to 80 g/m2) 2 x 600 sheets (Cassette) + 165 sheets (MPT) (A4 / Letter size or less equivalent to 64 g/m2) |
||
| Maximum | 7,150 sheets (Main Unit + 2 x 1,500 sheets PF-7150 x1 + 3,000 sheets PF-7120 x1 + MPT) | |||
| Paper Size | Cassette | Min. A6R – Max. SRA3(320mm x 450mm); Cassette 1 Min. A6R – Max. A4R (Legal) | ||
| MPT | Min. A6R – Max. SRA3(320mm x 450mm) & Banner Print (1,220mm x 304.8mm) | |||
| Paper Size | Cassette | 52~300g/m2 | ||
| MPT | 52~300g/m2 ; Banner paper 136~163g/m2 | |||
| Duplex Printing | Paper size: Min. A6R – Max. SRA3(320mm x 450mm) ; Paper weight: 60~256g/m2 | |||
| Output Capacity | Max. 500 sheets + 100 sheets face-down with Inner Job Separator | |||
| Control Panel | 10.1 inch resistive touch panel | |||
| Dimension (W x D x H) (Main Unit) | 602mm x 665mm x 790mm | |||
| Weight (Main Unit) | Approx. 90 kg | |||
| Power Consumption (Standard configuration) |
Copy/Print Mode | 450W | 590W | |
| Stand-by Mode | 40W | |||
| Energy Saver | 0.5W | |||
| Noise (ISO7779/ ISO9296) | Copy/Print Mode (Mono/Color) |
66dB/67dB | 68dB/69dB | |
| Stand-by Mode | 35dB | |||
Copy Functions (Standard)
| TASKalfa 2554ci | TASKalfa 3554ci | |||
|---|---|---|---|---|
| Copy Size | Max. A3 (Ledger) – Min. A6R (StatementR) | |||
| Resolution | Scanning: 600 x 600 dpi ; Writing: 1200 x 1200 dpi multiple value | |||
| First Copy Time (Mono/Color) | 6.4/8.5 seconds | 5.3/7.0 seconds | ||
| Zoom Ratio | Manual | 25% – 400% (1% per Step) | ||
| Multiple Copy | 1 – 9,999 | |||
Print Functions (Standard)
| TASKalfa 2554ci | TASKalfa 3554ci | |||
|---|---|---|---|---|
| Resolution | 1,200 x 1,200 dpi ; 4,800 equivalent x 1,200 dpi level | |||
| PDL & Emulation | PRESCRIBE, PCL6 (PCL-XL, PCL 5c), KPDL3 (Postscript 3 compatible), XPS, OpenXPS, PDF Direct Print Ver. 2.0 | |||
| First Print Out Time (Mono/Color) | 7.0/9.2 seconds | 5.9/7.7 seconds | ||
| Supported Protocol | TCP/IP(IPv4/IPv6), Bonjour | |||
| Operating System Supported | Windows 8.1/10, Windows Server 2012/2012 R2/2016/2019, Mac OS X(10.9～), Google Chrome OS |
|||
| Interface | Ethernet (1000Base-T/100Base-TX/10Base-T)x1, USB 3.0×1, USB Host Interface (USB Host)x4, NFC TAGx1 | |||
Scan Functions (Standard)
| TASKalfa 2554ci | TASKalfa 3554ci | |||
|---|---|---|---|---|
| Original size | Table: Max. A3 (Ledger) DP: Max. A3 (Ledger) – Min. A6R (DP-7140 is A5R) Banner: Max. 1,900mm |
|||
| Resolution | 600 x 600 dpi, 400 x 400 dpi, 300 x 300 dpi, 200 x 200 dpi, 200 x 100 dpi, 200 x 400 dpi | |||
| File Format | TIFF, JPEG, XPS, OpenXPS, PDF (MMR/JPG compression/High-compression PDF), PDF/A-2, Encrypted PDF, Searchable PDF (Optional), MS Office file(Optional) |
|||
| Image Type Mode | Text, Photo, Text + Photo, Text (Fine Line) | |||
| Send Method | SMB (Version 3.0), SMTP, FTP, FTPoverSSL, USB, TWAIN Source (Network), WIA Driver (Network), DFS, DSM |
|||
| Address Storage | 2,000 addresses (Common address list), 500 groups (Group address list) | |||
Fax Functions (Optional)
| TASKalfa 2554ci | TASKalfa 3554ci | |||
|---|---|---|---|---|
| Original Size | Max. A3 (Ledger) – Min. A6R (StatementR), Banner: 1,600mm | |||
| Coding Method | MMR, MR, MH, JBIG | |||
| Transmission Speed | 33.6 kpbs | |||
| Transmission Time | Less than 3 sec. (With JBIG) | |||
| Memory | 170MB | |||

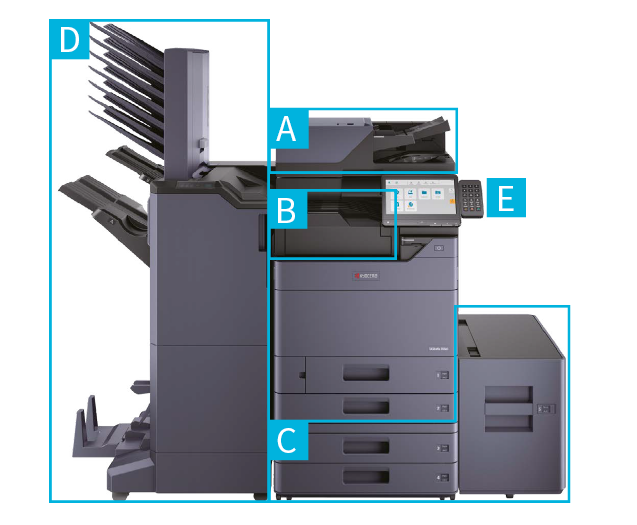

Options
-
- A: Document Processor
- B: Inner Shift Tray, Inner Finisher, Finisher Attachment Kit,
- C: Paper Feeder
- D: Finisher
- Other options
ADOCUMENT PROCESSOR
*Installation of either a document processor or a platen cover is required.
DP-7140
Low speed type doucment processer for max. 50 sheets.
DP-7150
High speed type doucment processer for max. 140 sheets
DP-7160
Duplex scanning and copying for up to 320 sheets.
DP-7170
Duplex scanning and copying for up to 320 sheets with multi feed detection and staple detection.
Platen Cover Type(E)
Platen cover to secure originals on the platen glass.
BINNER SHIFT TRAY, INNER FINISHER, FINISHER ATTACHMENT KIT
JS-7110
Sorts and stacks output copies as seperated sets per different jobs.
DF-7100
Supports output up to 500 sheets. It also offers shift-sorting and stapling, and with additional punching option.
AK-7110
Required when configuring with a finisher.
PH-7120
Punch unit for DF-7100.
CPAPER FEEDER
*Installation of either PF-7140 or PF-7150 is required when configuring with PF-7120.
PF-7140
Double 600-sheet paper feeder.
PF-7150
1,750 sheets (64g / m2) x 2 rows paper feeders set.
PF-7120
Large-capacity paper feed deck that accommodates 3,500 sheets (64g / m2)
DFINISHER
DF-7120
1000-sheet finisher. Supports shift-sorting and stapling, with optional punch unit.
DF-7140
Stacking up to 4,000 sheets. Supports 2-tray sorting, shift-sorting and stapling, with optional punch unit, booklet folder, and Z-fold unit.
DF-7150
Stacking up to 4,000 sheets. Supports 2-tray sorting, shift-sorting and 3 types of 100-sheet stapling. with optional punch unit, booklet folder, and Z-fold unit.
ZF-7100
Device for Z-fold output.
* AK-7120 is required for configuration.
* Cannot configurate with IS-7100.
* Only for 60ppm/70ppm models.
IS-7100
Inserter for adding different media as separator pages and covers.
* AK-7110 is required for configuration.
* Cannot configurate with ZF-7100.
* Only for 60ppm/70ppm models.
MT-730(B)
Mailbox for DF-7140.
BF-730
Booklet folder for DF-7140.
PH-7C
Punch unit for DF-7120/DF-7140.
E OTHER OPTIONS
NK-7120
External numeric keypad with start, stop and reset controls.
Banner Guide 10
Auxiliary part for banner paper feeding. Supports continuous paper feed up to 10 sheets.
DT-730(B)
Auxiliary part for banner paper feeding. Supports continuous paper feed up to 10 sheets.
FAX System 12
For sending and receiving faxes. (Support maximum installation of 2 units)
Internet FAX Kit(A)
Supports fax function over the internet.
* The optional fax system is required separately.
Card Authentication Kit
For access control with IC card authentication.
* A separate card reader is required.
IC Card Reader
IC card reader for identity authentication.
* A separate IC card authentication kit is required.
Scan extension kit(A)
Extended option for OCR scanning. Enables output of scanned documents into text searchable PDF, or further converting into Word, Excel, and PowerPoint formats.
HD-16
Expand HDD memory capacity to 1TB, more documents , and PDF files with larger file size can be printed directly.
IB-37/IB-38
An expansion option that supports Wi-Fi (5GHz/ 2.4GHz) and enables high-speed wireless LAN communication. Complies with wireless standard of EEE802.11a/b/g/n/ac, and allows use of infrastructure mode and Wi-Fi Direct at the same time.
IB-51
Expansion option for Network Connection Port (NIC). Enable connections of two LANs at one time.
Part # 1102YP2US0
