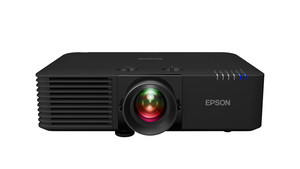

Epson POWERLITE L775U 7000 lumen 4KE PROJECTOR



Epson PowerLite L775U 3LCD Laser Projector with 4K Enhancement

PowerLite L775U 3LCD Laser Projector with 4K Enhancement

EpsonAuthorized Dealer

Deliver brilliant displays with remarkable brightness and 4K Enhancement.

  • Ultra bright, true-to-life images — Best-in-Class Color Brightness with 3-chip 3LCD technology and 7,000 lumens of color and white brightness
  • 4.6 million pixels on screen — WUXGA with 4K Enhancement provides a visibly smoother and sharper display, even at close viewing distances; accepts 4K content
  • Virtually maintenance-free — 20,000-hour laser light source and air filter
  • Large, ultra wide display — display images up to 500″ diagonal either in standard 16:10 and 16:9 or in ultra wide 16:6 and 21:9 for immersive video conferencing
  • Streamlined installation — wide lens shift, 1.6x optical zoom, built-in edge blending and geometric correction tools via on-screen menu or Epson® Professional Projector Tool software for Windows® and macOS®

Note: All claims and corresponding disclaimers must be used exactly as they appear in the product assets available on this site.

Model: V11HA96120 Support




EpsonAuthorized Dealer

Projection System RGB liquid crystal shutter projection system
Projection Method Front/rear/ceiling mount
LCD Size 0.67″ (C2Fine)
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Native Resolution 1920 x 1200 (WUXGA) 4KE1
Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness3 Color Light Output: 7,000 lumens
White Brightness3 White Light Output: 7,000 lumens
Contrast Ratio Up to 2,500,000:1
Brightness Uniformity (Typical) 86%
Color Reproduction Up to 1.07 billion colors
Size (Projected Distance) 50″ – 500″
Projected Distance 80″ screen 2.33 m – 3.78 m
Lens Shift (Manual) Vertical: ±50%; Horizontal: ±20%
Keystone Correction Vertical: ±30 degrees;
Horizontal: ±30 degrees
Light Source Laser Diode
Laser Light Source Life4 Normal: 20,000 hours; Quiet: 20,000
hours; Extended: 30,000 hours
Projection Lens (Standard)
Type Optical Zoom (manual)/Focus (manual)
F-Number 1.5 – 1.7
Focal Length 20.0 mm – 31.8 mm
Zoom Ratio 1.00 – 1.6x (optical)
Throw Rate Range 1.35 – 2.20 (optical)
Lens Cover Lens cap (without string)
Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
Auto Power On Signal Detection on HDMI/Plug-In Detection
Sleep Mode Yes (with timer)
HDMI CEC Control Yes
Power Consumption
382W (Normal)
285W (Quite)
275W (Extended)
2.0W Standby (Communication on)
0.5W Standby (Communication off)
Fan Noise 31 dB (Normal Mode); max. 23 dB (ECO Mode)
Security Security cable hole, Kensington lock provision
A/V Mute Yes
Camera Yes
Speaker(s) 10 W (mono)
Split Screen5 Yes (Up to 2 Screens)
Content Playback Yes
Quick Corner® Yes
Corner Wall Yes
Curved Surface Yes
Edge Blending Yes
Screen Sharing Yes
Effective Scanning Frequency Range (Digital)
Pixel Clock 25.1 MHz – 594 MHz
Horizontal 26 kHz – 135 kHz
Vertical 23.98/24/25/29.97/30/50/59.94/60 Hz
Dimensions (W x D x H)
Excluding Feet 17.32″ x 11.97″ x 4.80″
Including Feet 17.32″ x 12.59″ x 5.35″
Weight 19.1 lb
Remote Control
Features Source Search, HDMI, USB, Computer, LAN, Power,
Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu,
Home, Auto, Enter, Esc, Default
Operating Angle Rear: Right/Left: -55 to +55 degrees;
Upper/Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30
degrees; Upper/Lower: 0 to +60 degrees
Operating Distance 19.7 ft (6 m)
Eco Features
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9
Epson ConnectionSM
Pre-sales support: U.S. and Canada 800-463-7766
Internet website:
Service Programs
The projector has a limited warranty of 3 years. Epson Road
Service program with free Next-Business-Day replacement10,
PrivateLine® dedicated toll-free support (U.S. and Canada only)
What’s Included
PowerLite L775U laser projector, power cable, computer
cable (HDMI), projector remote control with batteries, Quick
Reference card, cable cover
Ordering Information
PowerLite L775U V11HA96120
Replacement Air Filter (ELPAF56) V13H134A56
Wireless LAN Adapter (ELPAP11) V12H005A02
Custom Micro-Adjustable Mount (ELPMBPRH) V12H809001
Universal Projector Mount (ELPMBPJG) V12H808001
PowerLite Pilot™ 3 (ELPCB03) V12H927020
Pixie Plus ELPSP10
External Camera V12HA46010
External Speaker (ELPSP02) V12H467020
DC-07 Document Camera V12H759020
DC-13 Document Camera V12H757020
DC-21 Document Camera V12H758020
1-Year Extended Service Plan EPPEXPE1
2-Year Extended Service Plan EPPEXPE2
